How to Configure Workflow Manager in SharePoint 2013


Sathish Nadarajan
SharePoint MVP
Published On :   20 Apr 2016
Visit Count
Today :  2    Total :   4941
Plan, Migrate, Secure, Report
SharePoint & Office 365 Tool. Simple & Easy to Use. 15-Day Trial!

SharePoint Office 365 Tool
Simple & Powerful Tool for Migration, Security & Reporting. Free Trial


I guess, this would be very late to write about the Workflows configuration by this time. Even, I created the workflows two years back. But, after sometime, when I try to configure in another server, I found it a bit difficult. Then, as usual, thought of having it handy.

The ultimate objective of this article is, from the designer, when I try to create a Workflow, on the Platform Type, I could not find the SharePoint 2013 workflow by default. Have a look on the below screen shot.

clip_image002

We want SharePoint 2013 Workflow should also be displayed on the dropdown. Now, the resolution for this can be a step by step procedure.

1. We need to install the web Platform Installer first. Download link - https://msdn.microsoft.com/en-us/library/jj193525.asp

2. Follow the Installation Link as shown below.

clip_image004

3. Install the Workflow Manager 1.0

clip_image006

clip_image008

clip_image010

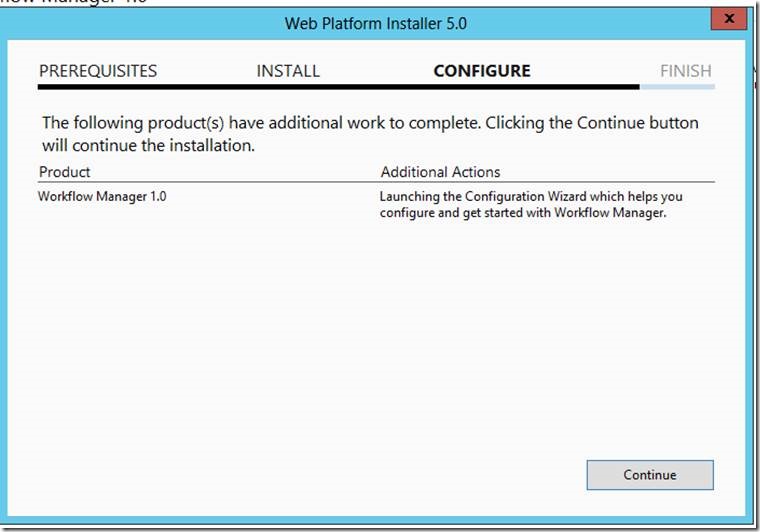

clip_image012

clip_image014

4. Now, we need to configure the Workflow Manager.

clip_image016

clip_image017

clip_image018

clip_image019

clip_image020

clip_image021

clip_image022

5. Now the configuration completes as shown in the image.

clip_image023

6. Again, go to the Web Platform Installer.

clip_image025

7. Search for Service Bus 1.0 Cumulative Update 1

clip_image027

clip_image029

clip_image031

8. Install Workflow Manager 1.0 Cumulative Update 3 as well

clip_image033

clip_image035

clip_image037

9. Do an IISRESET

clip_image039

10. Make sure the new Site Workflow Management Site is been created on the IIS

clip_image041

11. Open the Management Shell and execute the below PowerShell Script.

Register-SPWorkflowService -SPSite "http://xxxx" -WorkflowHostUri "http://xxxx:12291" –AllowOAuthHttp

clip_image043

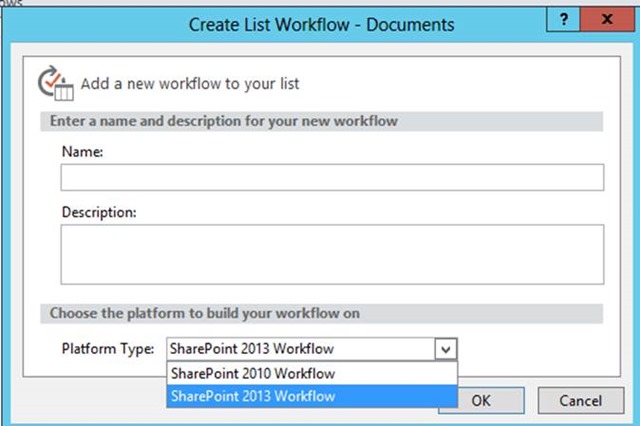

12. Now go back to the designer and we will be able to see the Platform Type as SharePoint 2013 Workflow.

clip_image045

Happy Coding,

Sathish Nadarajan.
