In the earlier article, we saw how to create a Low trust Provider Hosted App and host it in Azure Web Site. Now, let us see how to create a Low trust Provider Hosted App for Office 365, in fact Office 365 accepts only Low Trust Apps alone and Host the App web in Local IIS Server.

Almost all the steps are same except few. As far as considering the Visual Studio, all the steps are same. Only one big difference is, the APPWeb will be hosted in Local IIS Server. That will help a lot to debug. Anyhow, we are able to debug the Azure App Web also. But always, it is easy to keep the AppWeb on the Local IIS Server. Even, if required, we can move the APP Web from Local to Azure for the Customer’s environment.

The Pre-requires are as follows.

1. Office 365 Subscription

2. Visual Studio 2015 (Professional/Community/Enterprise Edition)

With the pre-requisites ready, let us start with step by step

1. Login to the Office 365 and Create a Developer Site.

clip_image002

2. Login to the INETMGR and Create the Local IIS Sites.

clip_image004

3. Click on “Add WebSite”

clip_image006

4. Add an Entry on the Hosts File. The Host File can be found in the path “c:\Windows\System32\Drivers\etc\”

5. The entry is as follows.

a. 127.0.0.1 Office365PHA

6. We need to Create a Self-Signed Certificate and Bind the Certificate to the newly created Web Site.

7. To Create a self-signed certificate, this time, we are going to use PowerShell Script with the –DNSName.

The Script is as

New-SelfSignedCertificate -DnsName Office365PHA -CertStoreLocation cert:\LocalMachine\My

8. Let us open the PowerShell window as Administrator.

9. Enter the above mentioned Script.

clip_image008

10. Once, the certificate got created, go to IIS and Server Certificates. We should be able to see the newly created certificate.

clip_image010

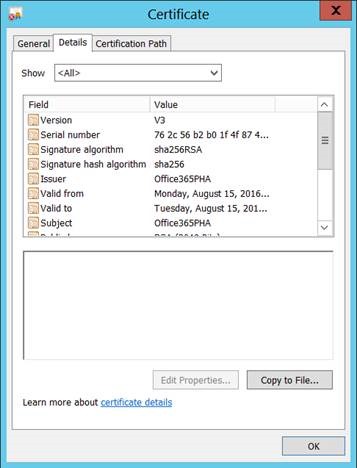

11. Double Click and Copy to File.

clip_image012

12. Copy the CER file to any location.

clip_image014

clip_image016

clip_image018

clip_image020

clip_image022

clip_image024

13. With this, let us open the Visual Studio to Create the APP Project.

clip_image026

14. Select the App Type and enter the O365 URL.

clip_image028

15. Enter the Credential.

clip_image030

16. Select the Target Version of SharePoint.

clip_image032

17. Select the Project Type.

clip_image034

18. Select the Authentication Settings for the Low Trust.

clip_image036

19. On Click of Finish, the Solution will get created. The Solution will looks like below.

clip_image038

20. Now, Go to the APPREGNEW.aspx and register the Client ID and Client Secret ID. https://sppalsmvp.sharepoint.com/sites/DeveloperSite/_layouts/15/appregnew.aspx

clip_image040

21. Once, got created, copy the clientid and client Secret ID to a notepad.

clip_image042

22. Now, let us go back to the IIS and the Certificates. Go to the location where we stored the Certificate exported.

clip_image044

23. Right Click the Cer file. Click on Install Certificate.

clip_image046

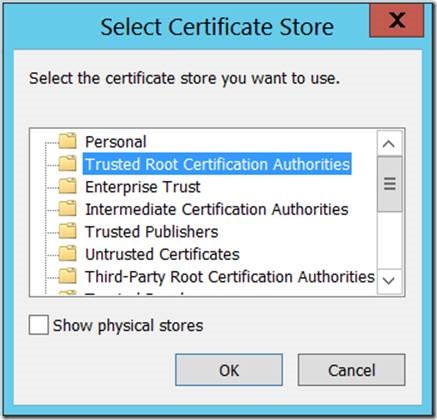

24. Follow the below Wizards.

clip_image048

clip_image050

clip_image052

clip_image054

clip_image056

25. Now, Open the IIS and Select the WebSite which we created on the Earlier Steps.

26. Enable the Directory Browsing.

clip_image058

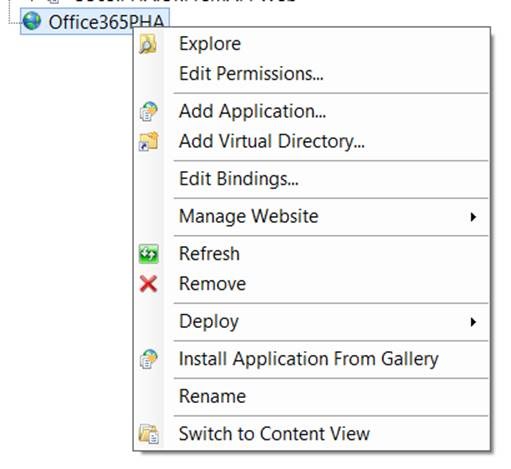

27. Right Click and Select Edit Bindings.

clip_image060

28. Add a Binding.

clip_image061

clip_image063

29. Now, launch the URLs, http://Office365PHA and https://Office365PHA and make sure that there is no exception. Though we have not provisioned the APP, but still we are making sure that the IIS does not have any issues.

30. Let us go back to the Visual Studio and update the AppManifest.xml.

31. The Updated XML will look like below.

 <?xml version="1.0" encoding="utf-8" ?>
 <!--Created:cb85b80c-f585-40ff-8bfc-12ff4d0e34a9-->
 <App xmlns="http://schemas.microsoft.com/sharepoint/2012/app/manifest"
      Name="Office365PHAOnPremAPP"
      ProductID="{cf118bb0-a286-4727-809b-0c15cb2bbe40}"
      Version="1.0.0.0"
      SharePointMinVersion="16.0.0.0"
 >
   <Properties>
     <Title>Office365.PHA.OnPrem.APP</Title>
     <StartPage>~remoteAppUrl/Pages/Default.aspx?{StandardTokens}</StartPage>
   </Properties>

   <AppPrincipal>
     <RemoteWebApplication ClientId="21bd3e55-507c-4f1a-bf63-d17022a74e8a" />
   </AppPrincipal>

   <AppPermissionRequests AllowAppOnlyPolicy="false">
     <AppPermissionRequest Scope="http://sharepoint/content/sitecollection/web" Right="FullControl" />
   </AppPermissionRequests>

 </App>


32. Update the Web.Config of the APP Web Project with the new ClientID and Client secret

clip_image065

33. Now, we are done. We need to publish the APP Web into the Local IIS. For that, follow the below steps.

34. Select the APPWeb and Click on Properties.

clip_image067

35. On the Web Tab, select the Local IIS and give the Redirect URI.

clip_image069

36. Click on “Create Virtual Directory”

37. Virtual Directory Got Created.

clip_image071

38. To Confirm, go to IIS and verify the Folder Structure.

39. In our case, it got created properly.

clip_image073

40. Now, we need to Publish the APP Project. For that, right click on the APPWeb and Click Publish. Note: Purposely, we are selecting the APPWeb, instead of the APP. Let me tell you in the below section, why we are doing this.

clip_image075

41. Click on Custom

42. Give the Profile Name and Click OK.

clip_image077

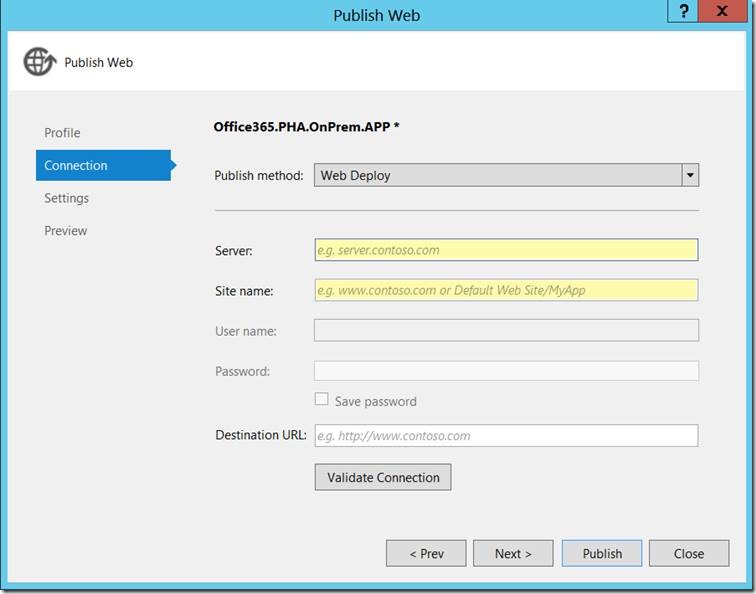

43. On the Below Screen, don’t give anything. Simply Close.

clip_image079

44. Save the Changes.

clip_image081

45. Now, Come back to the APP Project and Click Publish.

clip_image083

46. We will see the Profile which we created in the earlier step. Otherwise, the profile will not get created here. That’s why, I asked you to create the profile using the APPWeb Project and use the Profile in APP Project.

47. Click on Edit Profile and Enter the Client ID and the Client Secret properly.

clip_image085

clip_image087

48. Now, the Warning near to Edit will be gone.

clip_image089

49. Click on “Package the APP” Button and Enter the URL

clip_image091

50. We will get the Publish Success message.

clip_image093

51. Go to App Catalog Site. Refer HERE for further information regarding App Catalog

52. Upload the APP file into the App Catalog “Apps for SharePoint” List.

clip_image095

clip_image097

53. Now, come back to our Developer Site and go to Site Contents.

54. Click on “ADD an APP”

clip_image099

55. Select the APP

clip_image101

56. Trust the APP

clip_image103

57. This will take few minutes to Add the app.

58. Launch the APP

clip_image105

59. We will be seeing the Title of the SP Site.

clip_image107

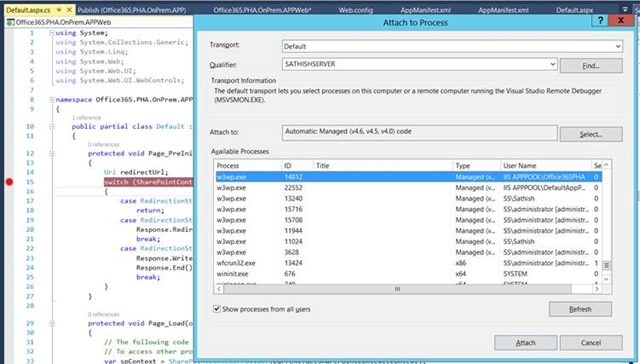

60. Now, let us put a break point on your Source Code and attach the process with W3WP Process.

clip_image109

61. We can see the Debugger stops as shown below.

clip_image111

With this, the Office 365 Provider Hosted App, Hosted on Local IIS is covered. Let us see some more interesting topics in the upcoming articles.

Happy Coding,

Sathish Nadarajan.
