Python Flask Application
I started this application sometime back by using psutils module for Python. During the course of development, I came to the conclusion that psutil is an overkill for this application and re-wrote those features with native Linux and Raspberry Pi commands. Except Flask, this application does not require any additional external Python Modules. The below is the solution structure of the project in PyCharm.
Index.py
This file contains the entire Python code for fetching the system information and converting it into Flask objects. Apart from getting the system information, from a developer perspective this file also has examples for
1. Routes in Flask
2. Custom Functions in Python
3. Flask Context Processor ( Direct invocation of Python Functions from HTML)
4. Flask Utility Processor ( Data Formatting Extensions, like filters in Angular Js)
5. Invoking Linux Terminal Commands from Python Code
from flask import Flask, render_template
from datetime import datetime
import platform
import subprocess
app = Flask(__name__)
@app.route('/')
@app.route('/home')
def index():
sys_data = {"current_time": '',"machine_name": ''}
try:
sys_data['current_time'] = datetime.now().strftime("%d-%b-%Y , %I : %M : %S %p")
sys_data['machine_name'] = platform.node()
cpu_genric_info = cpu_generic_details()
disk_usage_info = disk_usage_list()
running_process_info = running_process_list()
except Exception as ex:
print ex
finally:
return render_template("index.html", title='Raspberry Pi - System Information',
sys_data = sys_data,
cpu_genric_info = cpu_genric_info,
disk_usage_info= disk_usage_info,
running_process_info = running_process_info)
def cpu_generic_details():
try:
items = [s.split('\t: ') for s in subprocess.check_output(["cat /proc/cpuinfo | grep 'model name\|Hardware\|Serial' | uniq "], shell=True).splitlines()]
except Exception as ex:
print ex
finally:
return items
@app.context_processor
def boot_info():
item = {'start_time': 'Na','running_since':'Na'}
try:
item['running_duration'] = subprocess.check_output(['uptime -p'], shell=True)
item['start_time'] = subprocess.check_output(['uptime -s'], shell=True)
except Exception as ex:
print ex
finally:
return dict(boot_info = item)
@app.context_processor
def memory_usage_info():
try:
item = {'total': 0,'used': 0,'available': 0 }
item['total']= subprocess.check_output(["free -m -t | awk 'NR==2' | awk '{print $2'}"], shell=True)
item['used']= subprocess.check_output(["free -m -t | awk 'NR==3' | awk '{print $3'}"], shell=True)
item['available']= int(item['total'])- int(item['used'])
except Exception as ex:
print ex
finally:
return dict(memory_usage_info = item)
@app.context_processor
def os_name():
os_info = subprocess.check_output("cat /etc/*-release | grep PRETTY_NAME | cut -d= -f2", shell=True).replace('\"', '')
return dict(os_name=os_info)
@app.context_processor
def cpu_usage_info():
item = {'in_use': 0}
try:
item['in_use'] = subprocess.check_output("top -b -n2 | grep 'Cpu(s)'|tail -n 1 | awk '{print $2 + $4 }'", shell=True)
except Exception as ex:
print ex
finally:
return dict(cpu_usage_info = item)
@app.context_processor
def cpu_processor_count():
proc_info = subprocess.check_output("nproc", shell=True).replace('\"', '')
return dict(cpu_processor_count=proc_info)
@app.context_processor
def cpu_core_frequency():
core_frequency = subprocess.check_output("vcgencmd get_config arm_freq | cut -d= -f2", shell=True).replace('\"', '')
return dict(cpu_core_frequency=core_frequency)
@app.context_processor
def cpu_core_volt():
core_volt = subprocess.check_output("vcgencmd measure_volts| cut -d= -f2", shell=True).replace('\"', '')
return dict(cpu_core_volt=core_volt)
@app.context_processor
def cpu_temperature():
cpuInfo = {'temperature': 0, 'color': 'white'}
try:
cpuTemp = float(subprocess.check_output(["vcgencmd measure_temp"], shell=True).split('=')[1].split('\'')[0])
cpuInfo['temperature']=cpuTemp
if cpuTemp > 40 and cpuTemp < 50:
cpuInfo['color'] = 'orange'
elif cpuTemp > 50:
cpuInfo['color'] = 'red'
return cpuInfo
except Exception as ex:
print ex
finally:
return dict(cpu_temperature=cpuInfo)
def disk_usage_list():
try:
items = [s.split() for s in subprocess.check_output(['df', '-h'], universal_newlines=True).splitlines()]
except Exception as ex:
print ex
finally:
return items[1:]
def running_process_list():
try:
items = [s.split() for s in subprocess.check_output(["ps -Ao user,pid,pcpu,pmem,comm,lstart --sort=-pcpu"], shell=True).splitlines()]
except Exception as ex:
print ex
finally:
return items[1:]
@app.context_processor
def utility_processor():
def short_date(a,b,c):
return u'{0}{1}, {2}'.format(a, b,c)
return dict(short_date=short_date)
if __name__ == "__main__":
app.run(debug=True)
Index.html
This HTML file is more a template, which binds the data that this generated in index.py. You can see some similarities between Angular Js and Flask data binding as both uses curly braces to identify the model. For responsive UI, I have used Skeleton instead of bootstrap as this application doesn’t require any complex HTML components. Table sorting is done with the help of sorttable Js
<!DOCTYPE html>
<html lang="en">
<head>
<!-- Basic Page Needs
–––––––––––––––––––––––––––––––––––––––––––––––––– -->
<meta charset="utf-8">
<title>{{title}}</title>
<meta name="description" content="System information of Raspberry Pi">
<meta name="author" content="Ashok Raja T">
<!-- Mobile Specific Metas
–––––––––––––––––––––––––––––––––––––––––––––––––– -->
<meta name="viewport" content="width=device-width, initial-scale=1">
<!-- FONT –––––––––––––––––––––––––––––––––––––––––––––––––– -->
<link href="//fonts.googleapis.com/css?family=Raleway:400,300,600" rel="stylesheet" type="text/css">
<!-- CSS
–––––––––––––––––––––––––––––––––––––––––––––––––– -->
<link rel="stylesheet" href="static/css/normalize.css">
<link rel="stylesheet" href="static/css/skeleton.css">
<link rel="stylesheet" href="static/css/pi.css">
<script src="static/js/sort.js"></script>
<!-- Favicon
–––––––––––––––––––––––––––––––––––––––––––––––––– -->
<link rel="icon" type="image/png" href="static/images/favicon.png">
<style>
</style>
</head>
<body style="background-color:#757575">
<!-- Primary Page Layout
–––––––––––––––––––––––––––––––––––––––––––––––––– -->
<div class="container" style="max-width:600px;color:#ffffff">
<div class="row" style="padding-top:20px;">
<div class="two columns">
<img src="static/images/logo.png" style="width:60px" />
</div>
<div class="ten columns">
<h3 style="margin-top:10px;color:#FF8C00">Raspberry Pi - Sys Info</h3>
</div>
</div>
<div class="row g-header">
<h5>
Generic Info
</h5>
</div>
<div class="row g-row">
<div class="three columns g-head">
Name of the Pi
</div>
<div class="nine columns">
{{sys_data.machine_name}}
</div>
</div>
<div class="row g-row">
<div class="three columns g-head">
Hardware Type
</div>
<div class="nine columns">
{{cpu_genric_info[1][1]}}
</div>
</div>
<div class="row g-row">
<div class="three columns g-head">
Serial Number
</div>
<div class="nine columns">
{{cpu_genric_info[2][1]}}
</div>
</div>
<div class="row g-row">
<div class="three columns g-head">
Operating System
</div>
<div class="nine columns">
{{os_name}}
</div>
</div>
<div class="row g-row">
<div class="three columns g-head">
Running Since
</div>
<div class="nine columns">
{{boot_info.running_duration}}, <b>Started on </b> {{boot_info.start_time}}
</div>
</div>
<div class="row g-row">
<div class="three columns g-head">
System Time
</div>
<div class="nine columns">
{{sys_data.current_time}}
<div style="text-align:right;padding-top:10px">
<a href="restart" onclick="return confirm('Do you wish to re-start your system ?')" class="button button-primary" style="margin-right:10px">Restart</a>
<a href="shutdown" onclick="return confirm('Do you wish to shutdown your system ?')" class="button button-primary">Shutdown</a>
</div>
</div>
</div>
<div class="row g-header">
<h5>
CPU Details
</h5>
</div>
<div class="row g-row">
<div class="three columns g-head">
Processor Type
</div>
<div class="nine columns">
{{cpu_genric_info[0][1]}}
</div>
</div>
<div class="row g-row">
<div class="three columns g-head">
Core Frequency
</div>
<div class="nine columns">
{{cpu_core_frequency}} Mhz
</div>
</div>
<div class="row g-row">
<div class="three columns g-head">
No of Cores
</div>
<div class="nine columns">
{{cpu_processor_count}}
</div>
</div>
<div class="row g-row">
<div class="three columns g-head">
Temperature
</div>
<div class="nine columns" style="color:{{cpu_temperature.color}}">
{{cpu_temperature.temperature}} ° C
</div>
</div>
<div class="row g-row">
<div class="three columns g-head">
Core Volt
</div>
<div class="nine columns">
{{cpu_core_volt}}
</div>
</div>
<div class="row g-row">
<div class="three columns g-head">
CPU Usage
</div>
<div class="nine columns">
{{cpu_usage_info['in_use']}} %
</div>
</div>
<div class="row g-header">
<h5>
Memory Details
</h5>
</div>
<div class="row g-row">
<div class="three columns g-head">
Total Memory
</div>
<div class="nine columns g-row">
{{memory_usage_info.total}} MB
</div>
</div>
<div class="row g-row">
<div class="three columns g-head">
In Use
</div>
<div class="nine columns">
{{memory_usage_info.used}} MB
</div>
</div>
<div class="row g-row">
<div class="three columns g-head">
Free
</div>
<div class="nine columns">
{{memory_usage_info.available}} MB
</div>
</div>
<div class="row g-header">
<h5>
Disk Details <span class="item-count"> ( {{ disk_usage_info | length}} ) </span>
</h5>
</div>
<div>
<table class="u-full-width sortable">
<thead style="color:#C1FFC1">
<tr>
<th>File System</th>
<th>Size</th>
<th>Used</th>
<th>Avail</th>
<th>Used%</th>
<th>Mounted On</th>
</tr>
</thead>
<tbody>
{% for disk_item in disk_usage_info %}
<tr>
<td>{{disk_item[0]}}</td>
<td>{{disk_item[1]}}</td>
<td>{{disk_item[2]}}</td>
<td>{{disk_item[3]}}</td>
<td>{{disk_item[4]}}</td>
<td>{{disk_item[5]}}</td>
</tr>
{% endfor %}
</tbody>
</table>
</div>
<div class="row g-header">
<h5>
Running Process Details <span class="item-count"> ( {{ running_process_info | length}} ) </span>
</h5>
</div>
<div>
<table class="u-full-width sortable">
<thead style="color:#C1FFC1">
<tr>
<th>User</th>
<th>ProcId</th>
<th>CPU%</th>
<th>Mem%</th>
<th>Application</th>
<th>Started On</th>
</tr>
</thead>
<tbody>
{% for procinfo in running_process_info %}
<tr>
<td>{{procinfo[0]}}</td>
<td>{{procinfo[1]}}</td>
<td>{{procinfo[2]}}</td>
<td>{{procinfo[3]}}</td>
<td>{{procinfo[4]}}</td>
<td nowrap>{{ short_date( procinfo[7] , procinfo[6], procinfo[8]) }}</td>
</tr>
{% endfor %}
</tbody>
</table>
</div>
</div>
<!-- End Document
–––––––––––––––––––––––––––––––––––––––––––––––––– -->
</body>
</html>
Custom CSS
Apart from the default CSS files, that are part of Skeleton CSS, the below is the CSS that have been used to make changes to UI.
h5 {
margin-bottom: 2px;
}
th, td {
padding-top: 5px !important;
padding-bottom: 5px !important;
}
.g-header {
padding-top: 10px;
border-bottom: 1px solid #eee;
color: #FFD700;
}
.g-row {
padding-top: 5px;
}
.g-head {
font-weight: bold;
}
table.sortable thead {
font-weight: bold;
cursor: default;
}
.item-count {
color: white;
font-size: 75%;
}
Running the application

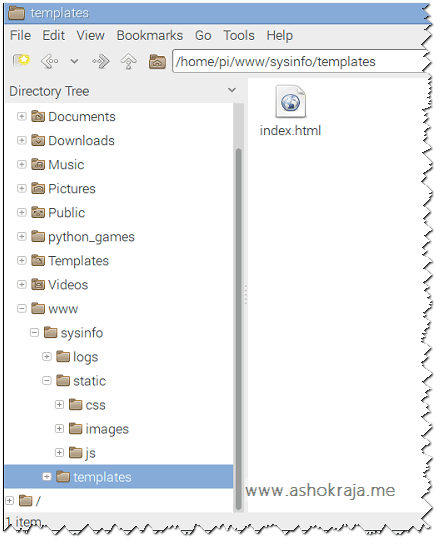

Create a folder named “sysinfo” inside home folder (In my case, “sysinfo” folder is inside “www” folder of “home” folder) of Raspberry pi and place these files inside that folder. Ensure that you are following the folder structure that is required by Flask.
To run this application, open the Terminal window from “sysinfo” folder and type
“python index.py” ( without quotes) . If your environment is configured properly for Python and Flask, you would get a notification in the console stating that the application is running at port 5000. Now you can access the application by opening the browser and point to http://localhost:5000.
To access the application remotely, outside of your home WiFi, this application should be served via Apache or Nginix Webserver. In the next article we can see how to route/serve this application via Apache and remotely view the Raspberry Pi system information from outside the home network.
