Step by Step Procedure to Install and Configure SharePoint 2016 in a Dev Box as Single Farm Server

Sathish Nadarajan

Solution Architect
February 5, 2018

Rate this article

Views
2941



I was preparing a Dev Box for the SharePoint 2016 and thought of sharing the same with the community.

1. We can download and install the SharePoint 2016 from the below link.

https://my.visualstudio.com/Downloads?q=SharePoint%20Server%202016

clip_image002

2. The installer is an EXE/MSI which can be double clicked to start the installation.

3. The installation is straight forward and the required components will be downloaded by the EXE itself. The prerequisites for the SP2016 can be found in the earlier article.

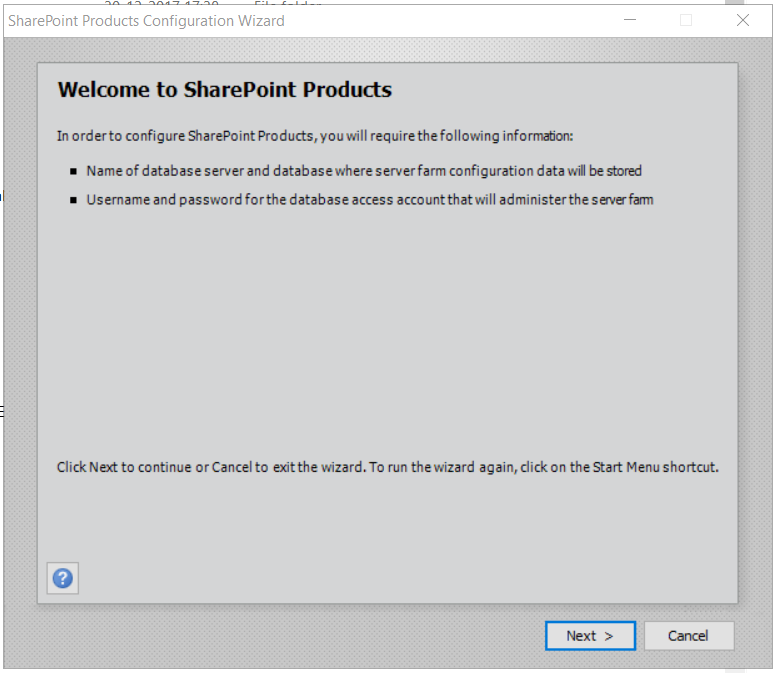

4. Once, the installation completes, start the configuration wizard.

clip_image003

5. Click on Next

6. Give yes for the required services restart.

clip_image004

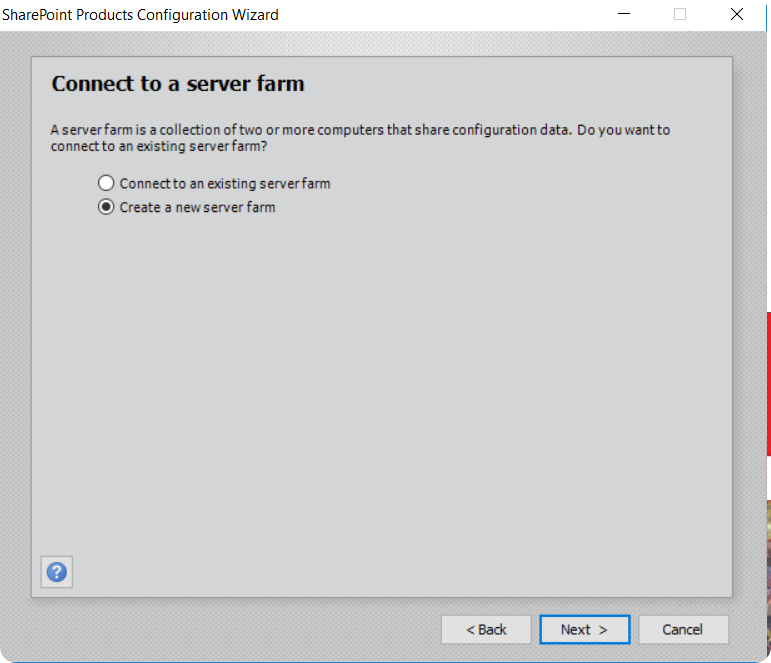

7. Since, I am creating a dev box, let us select the Single Server Farm and click Next.

clip_image005

8. Specify the Config Database details.

clip_image006

9. Give the Passphrase password.

clip_image007

10. In my case, as it is a single server farm, select it again and click next.

clip_image008

11. Specify the Central Admin Port and Click on Next.

clip_image009

12. Verify the Given information on the below screen.

clip_image010

13. Configuration Wizard starts and wait for all the tasks to be completed.

clip_image011

14. Once, the configuration completes, click Finish and launch the Central Admin URL.

clip_image012

Hope this helps. In the upcoming articles, let us see about various service application configurations.

Happy Coding,

Sathish Nadarajan.
